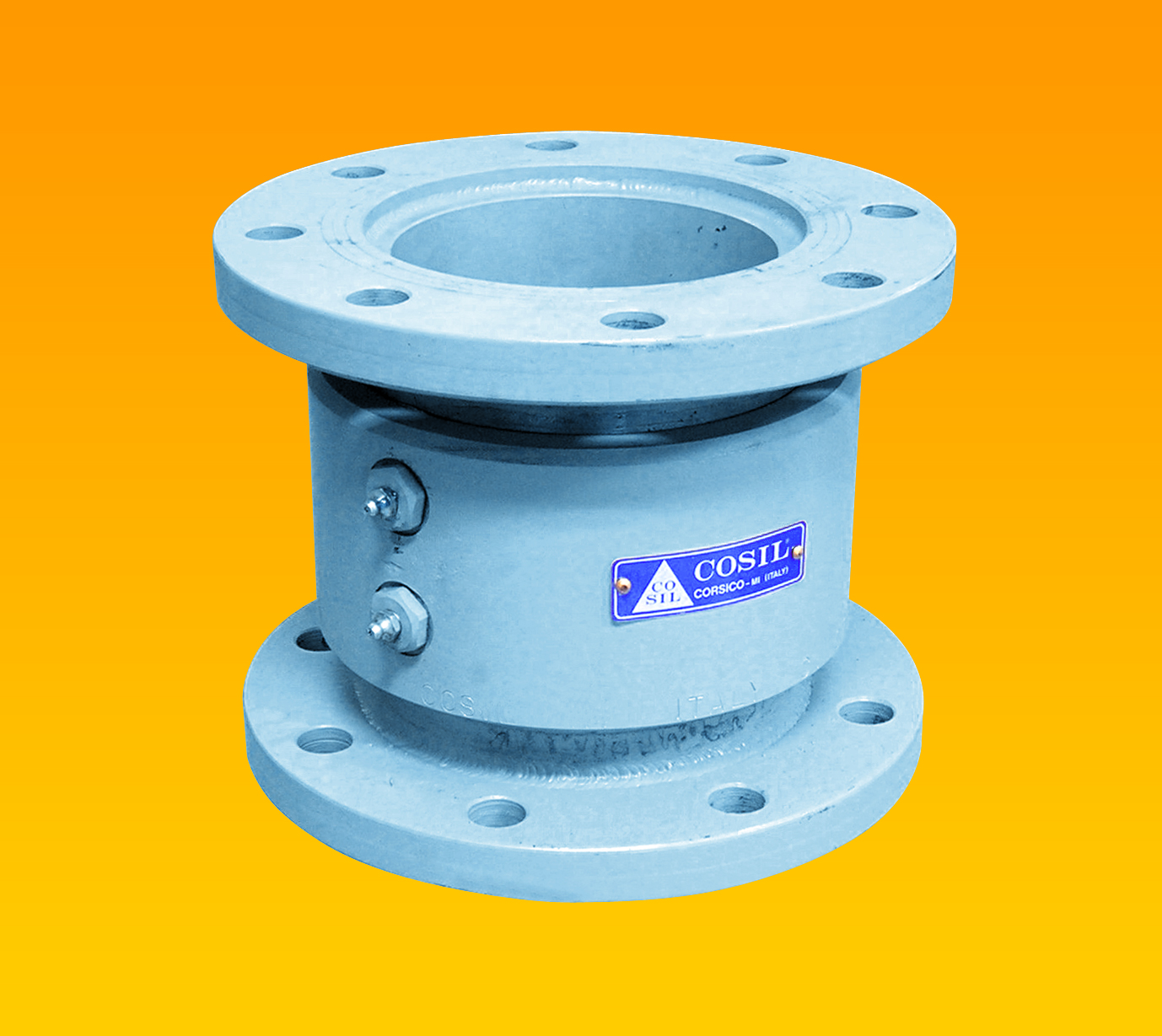

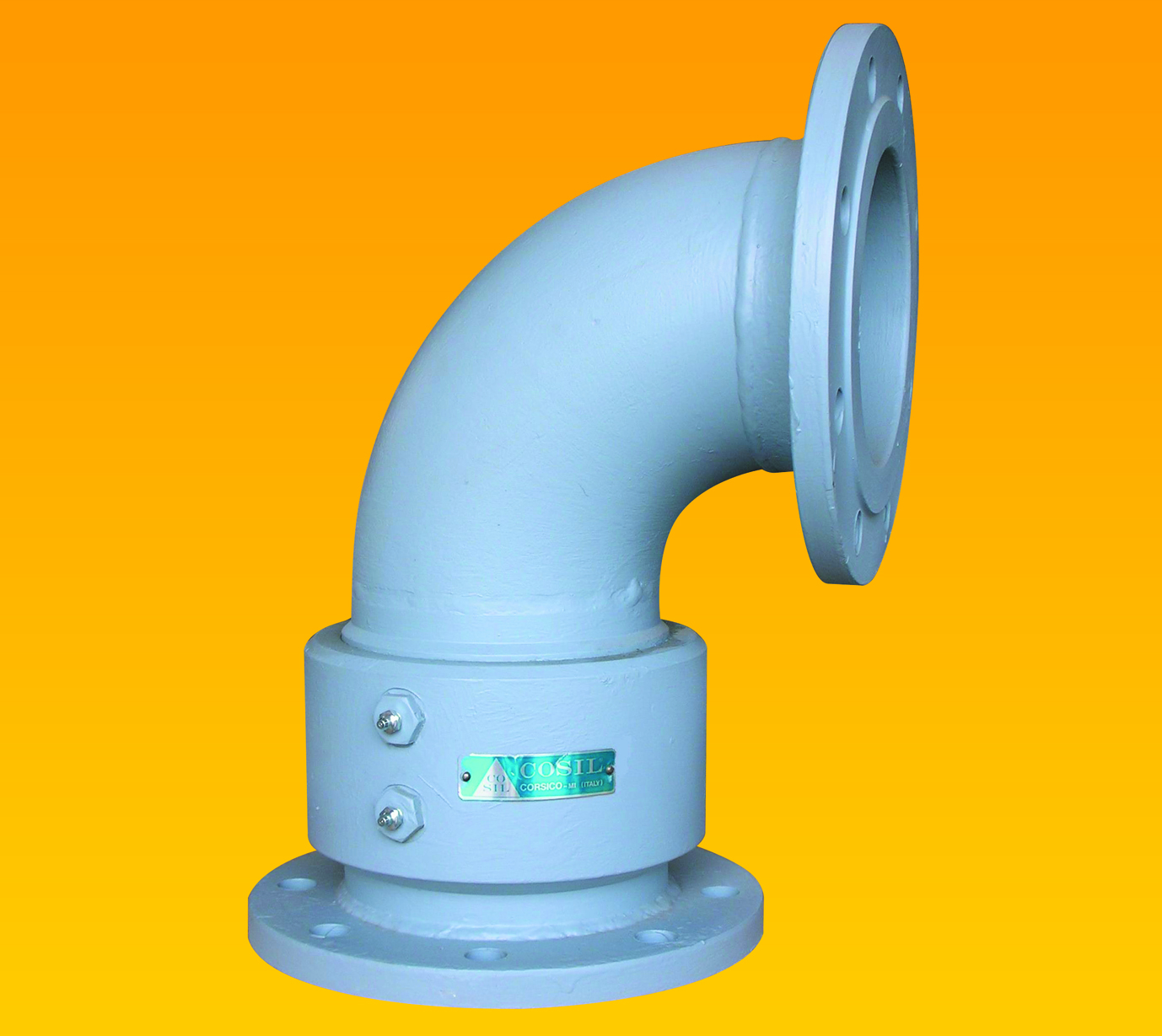

Produced since 1970, through a series of combinations named Styles, these products enable angular movements around their own axis and on orthogonal levels independent from each other. The movement of these joints is due to a double – ball bearing protected by grease. The swivel joints are composed by one, two or three swivel units interconnected and equipped with couplings
DIMENSIONS: from Ø 3/4”(DN 19) to Ø20”(DN 500)
MATERIALS: treated Carbon steel – Stainless steel AISI 304 – 316
WORKING PRESSURE: to be specified
WORKING TEMPERATURE: from -20°C to +100°C (180°C on request)
SEAL: composite gasket, elastomer + metal
Flanged couplings UNI PN 10 – PN 16 – ANSI 150 lb. (other by request)
Flanged couplings SAE 3000 – 6000 PSI
Female threaded couplings up to Ø4” BSP – BSPT – NPT
